N, N+1 and 2N in plain terms
- N — exactly enough capacity for the load. Any failure, or any maintenance, puts the load at risk.
- N+1 — one unit more than the load needs, so any single unit can fail or be taken out for service.
- 2N — two fully independent paths, each able to carry the whole load on its own.
- Distributed redundancy — the load is shared across several systems, sized so that the survivors can carry it when one fails; for example, four UPS systems where any three can carry the load.
These choices map to the Uptime Institute Tier classifications. Broadly: Tier I provides basic capacity, Tier II adds redundant capacity components, Tier III is concurrently maintainable, and Tier IV is fault tolerant.
Why redundancy on paper can fail
A redundancy claim on a drawing can hide problems that only appear under failure: a generator that is nominally spare but cannot carry the cooling load, two "independent" feeds that meet at the same board, or backup assignments that overload the equipment that survives. Found at commissioning, these are the most expensive problems to fix. Found in the model, they are a design change.
The live tier-uptime test in DCtoB

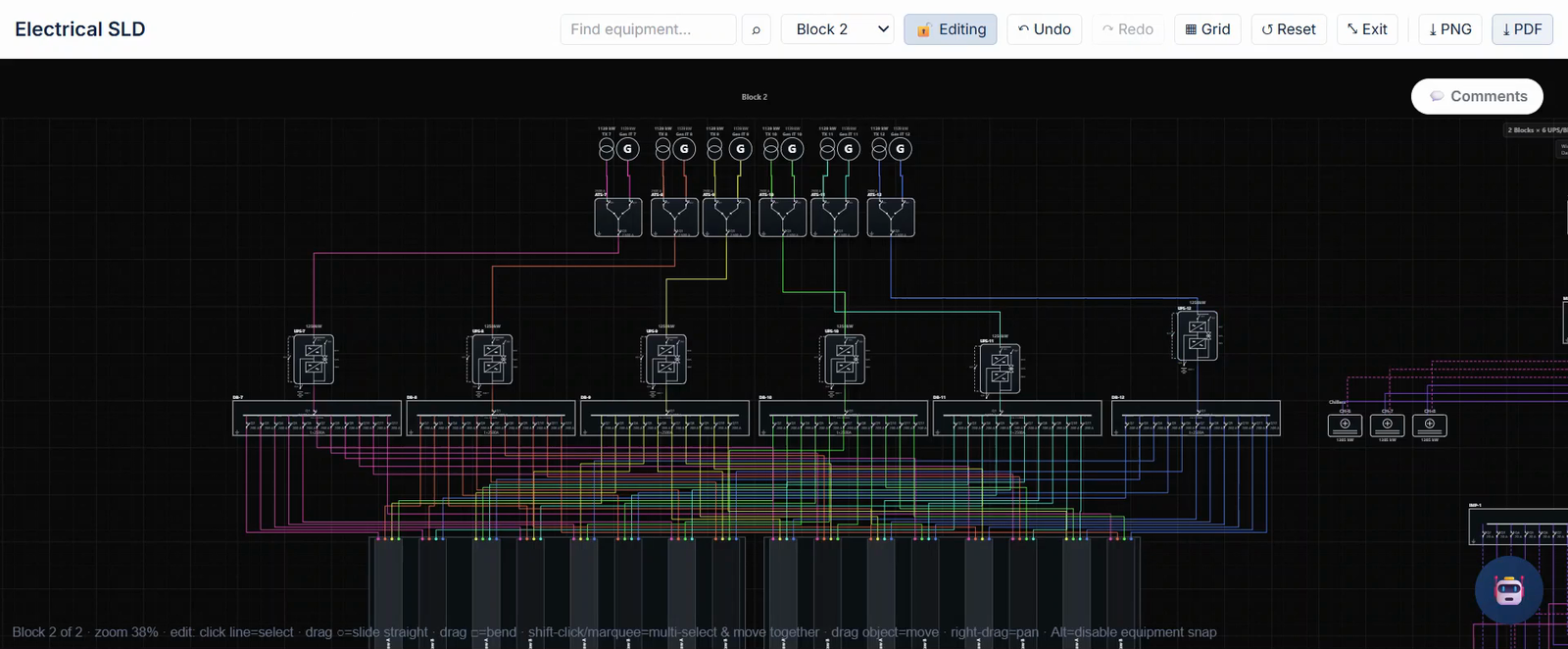

- Build the design. The electrical single line diagram is generated from the sizing, with every source, path and load.
- Trip any component. Fail a UPS, a generator or a feeder.
- Watch the load re-route. Power moves to the surviving paths in real time.
- See what holds. Overloaded or unsupported equipment shows up while the design is still a model.
Because the test runs on the same model as the sizing, the layout and the cost, fixing a gap updates the equipment, the diagram and the bill of quantities together.
Redundancy is a design input, not an afterthought
You set the redundancy and tier target at the start, and it drives how many UPS modules, generators and chillers are sized — and how much of the plot they need. That is why redundancy belongs in the test-fit, not only in the final design.
